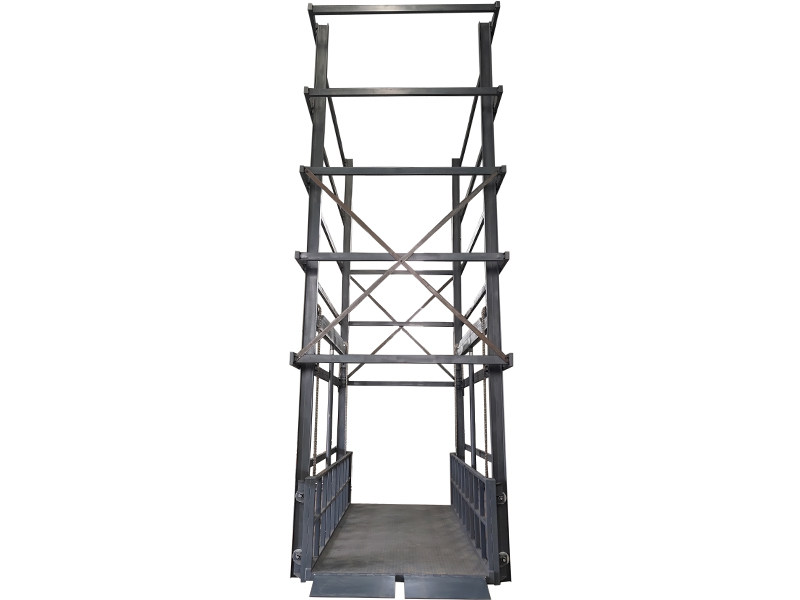

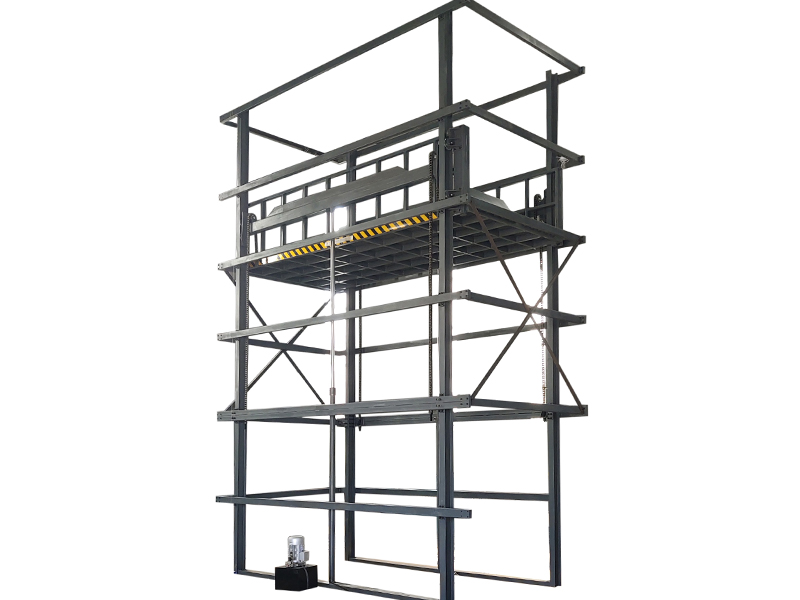

Guide Rail Lift Platform
Warehouse Vertical Cargo Lift Guide Rail Lift Platform
  This platform can install on the ground directly or make one pit,which is used for transfer cargo between different floors. Hydraulic drive, steady working and simple operation.  Carg
Max height5m
Max load capacity3000kg

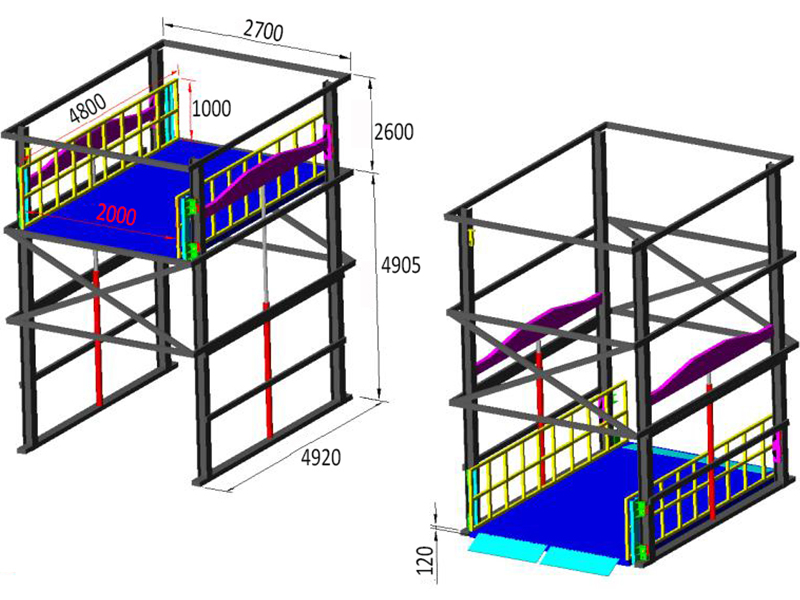

Platform size4.8*2m
  •   This platform can install on the ground directly or make one pit,which is used for transfer cargo between different floors. Hydraulic drive, steady working and simple operation.

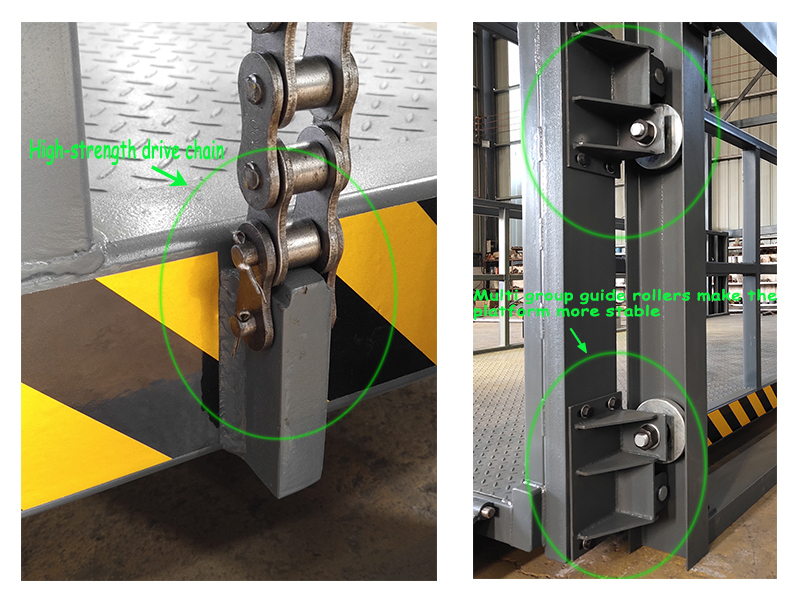

     Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

    Advantages

    1.High load capacity for cargo transport to higher heights

    2.Minimum height 100-200mm

    3.simple operation and reliable

    4.it can be designed according to your request

    5.hydraulic and electric drive

    PRODUCT DETAILS

    谷歌1

    谷歌2

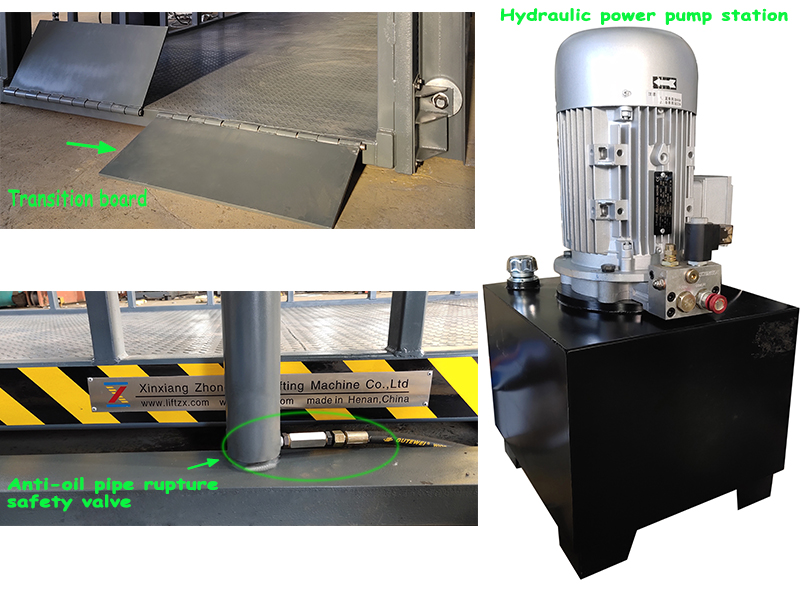

    Saftey devices

    Emergency

    drop valve

    The lift can go down to the nearest floor by hand when the power is cut off.

    Emergency

     stop button

    The lift can be stopped at any emergency.

    Anti-explosion valve

    When the hydraulic system pipe fracture,it can down the channel of the oil to stop the falling.
    Spillover valveIt can prevent high pressure  when the lift moves up.

    Electrical protection

    24V safety control,thermal overload protection ,open-phase protection.

    parameter



                           ITEMS

                              PARAMETERS

    Power Supply

    380V,3phase,50HZ

    Motor Power

    4KW/AC

    Platform Size

    4800mm*2000mm

    Load Capacity

    3000kg

    Lifting Speed

    optional

    Min Height(Pit depth)

    350mm

    Running Mode

    Jogging control

    Drive System

    Hydraulic driven

    Installation Mode

    No pit

    All above accept customized according to customer's requirements
