Stationary Scissor Lift

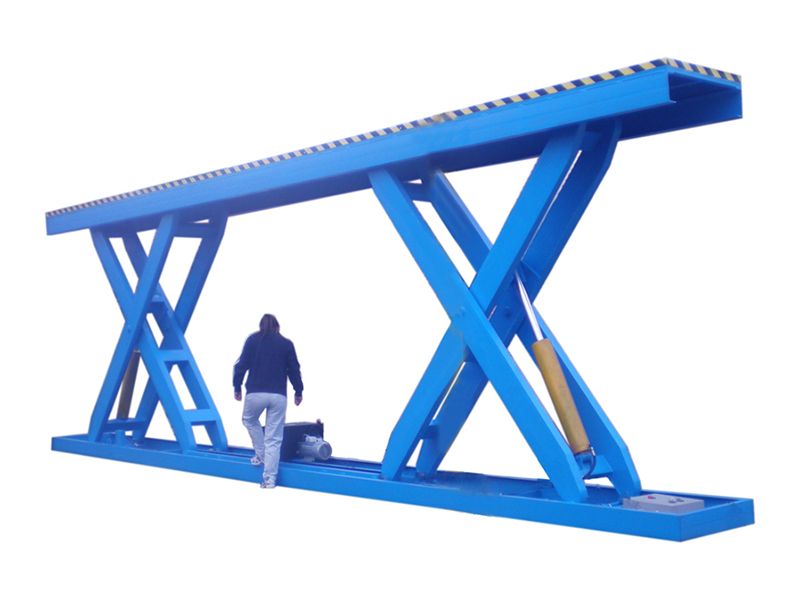

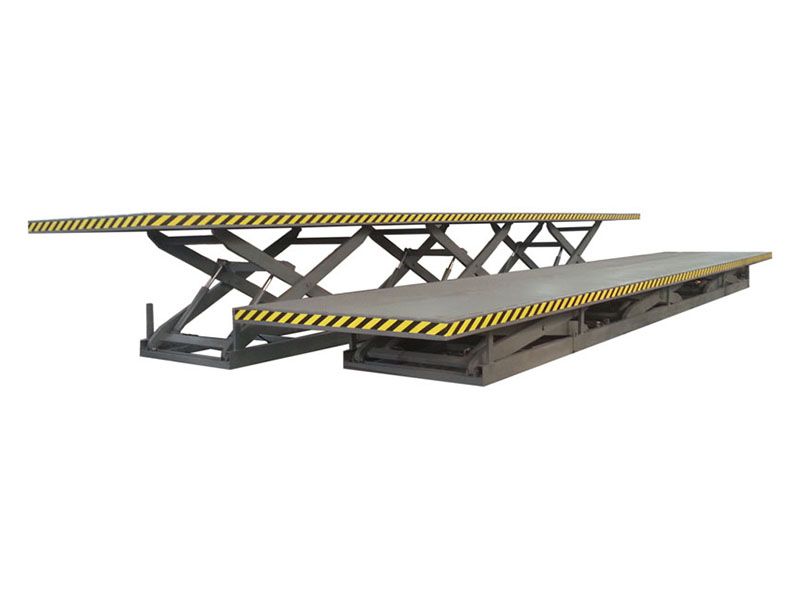

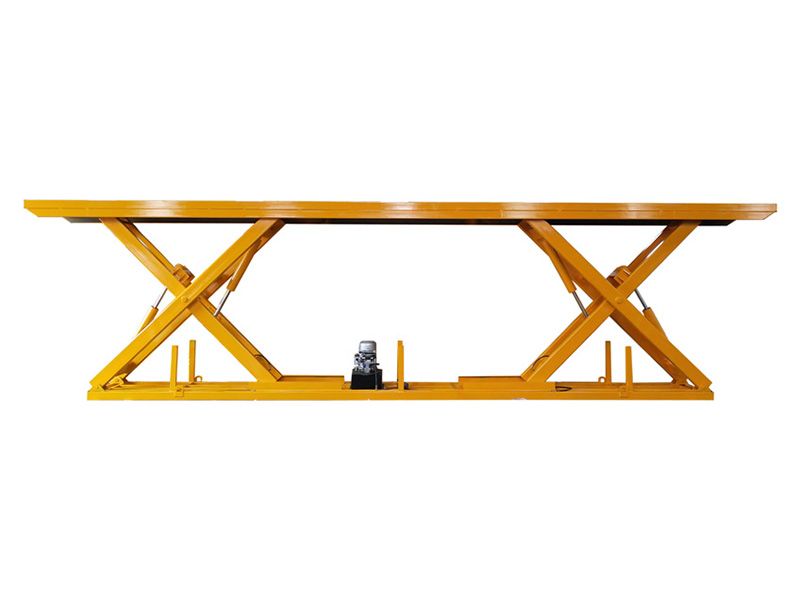

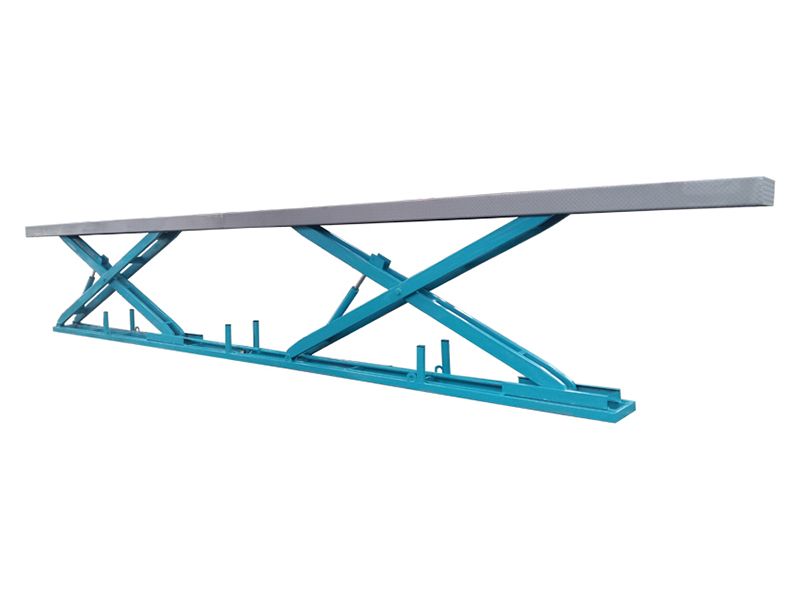

Fixed Heavy Duty Double Scissor Lift Platform
The product structure is firm, carrying capacity is large, the equipment lifts smoothly, its installment and the maintenance is very simple and convenient, is the economical practical ideal cargo tran
Lifting distance2000mm
Max load capacity10000kg
Length14000mm
  • The product structure is firm, carrying capacity is large, the equipment lifts smoothly, its installment and the maintenance is very simple and convenient, is the economical practical ideal cargo transportation equipment. According to the installation environment and the use requirements of lifting table, choose different optional configuration, can get better use effect.


    Product advantages:

    1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

    2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.

    3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

    4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.

    5.The hydraulic system has a power failure emergency manual descending device.


    Control system:

    1.The power part :AC380V/220V or DC24V/12V.

    2.The control part :   24V safety voltage.

    3.Each platform has a complete set of control switches.


    parameter
