Mobile Scissor Lift
Mobile Loading Lift Platform
The mobile lift platform is an economical hydraulic lifting platform with high safety and good mechanical properties. It is widely used in cargo platforms and loading and unloading sites without
Min height60mm
Lifting distance1500mm/custom
Max load capacity1500kg/custom
  • The mobile lift platform is an economical hydraulic lifting platform with high safety and good mechanical properties. It is widely used in cargo platforms and loading and unloading sites without loading and unloading equipment, and can be equipped with a variety of auxiliary equipment.

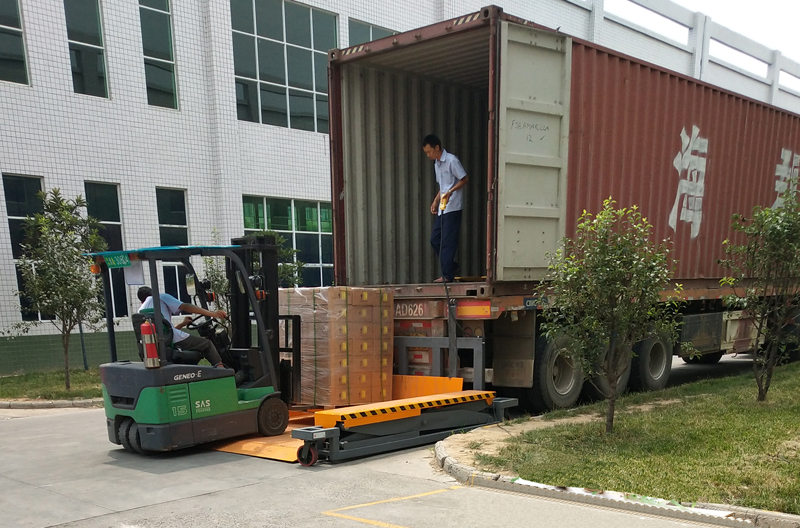

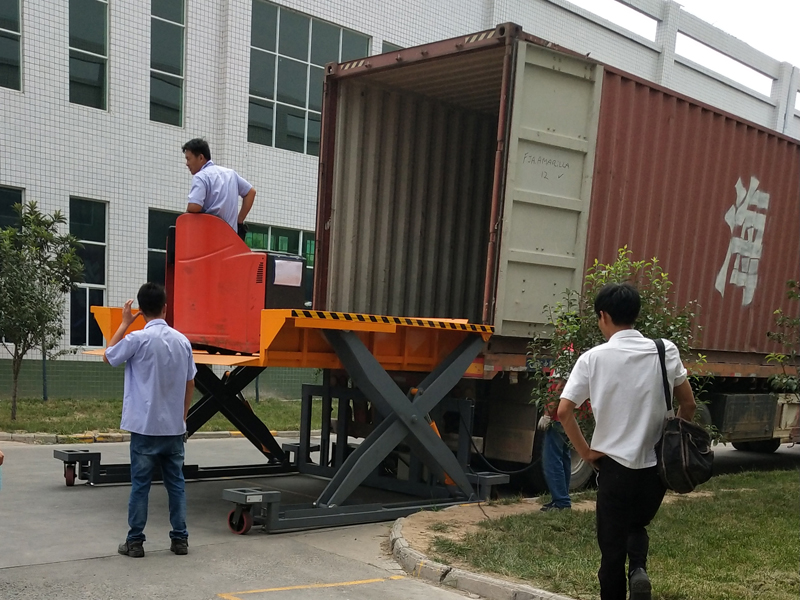

    应用2

    应用1

    马来西亚3

    5

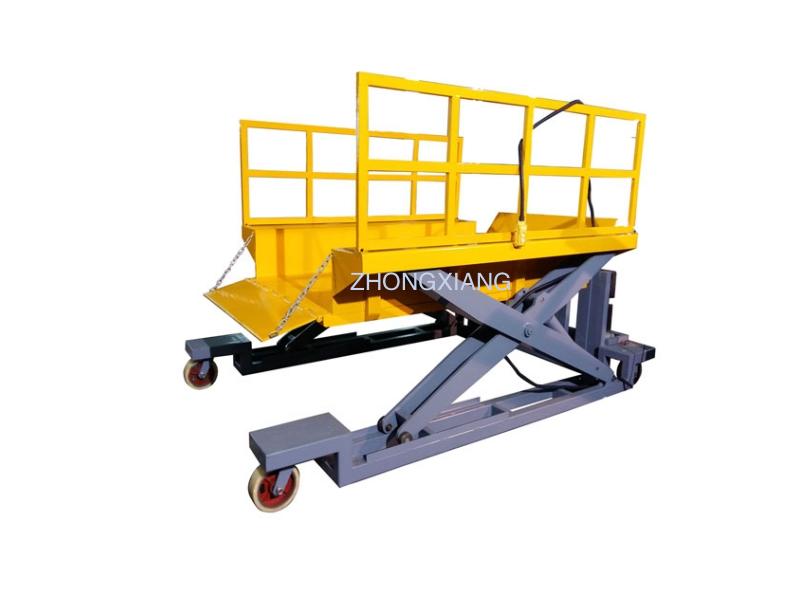

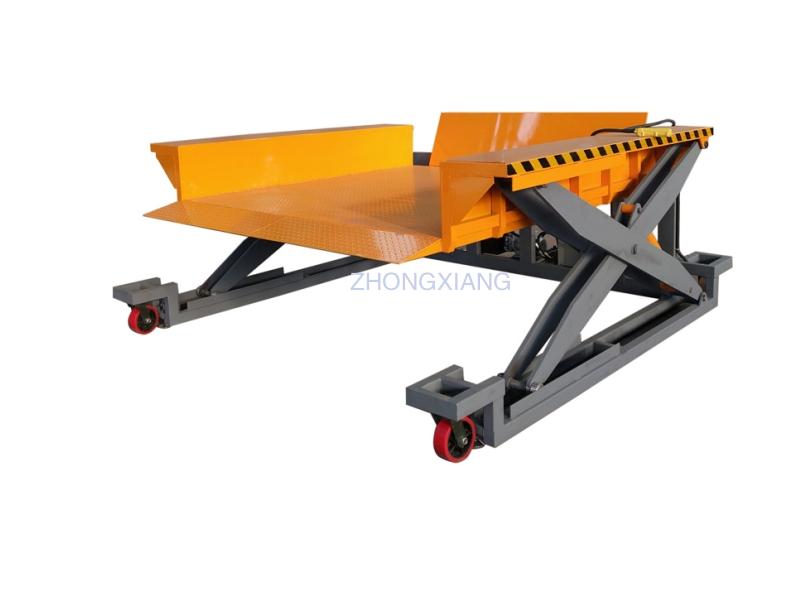

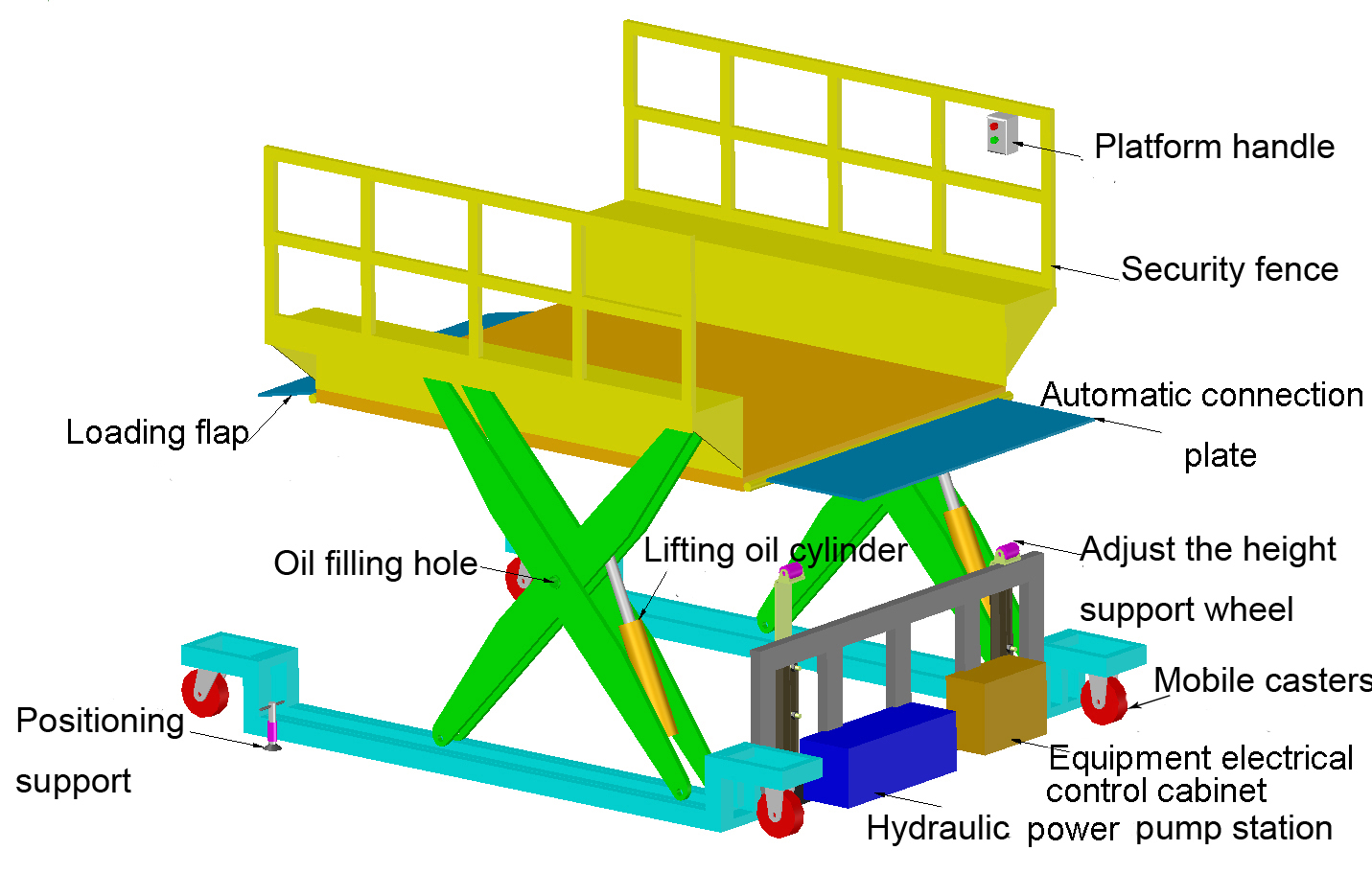

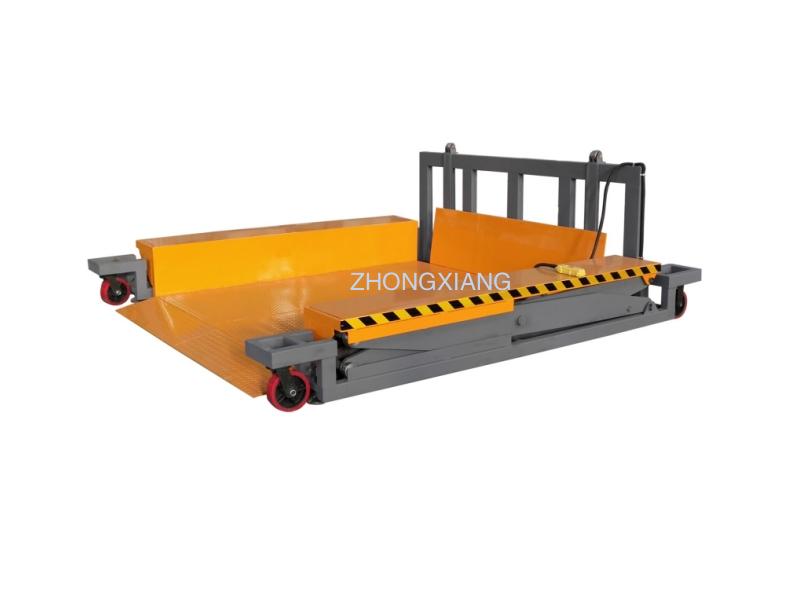

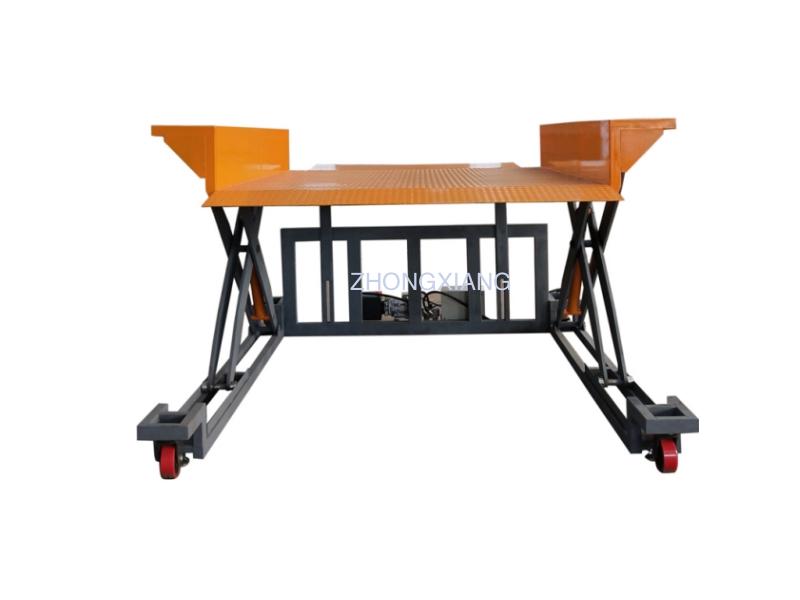

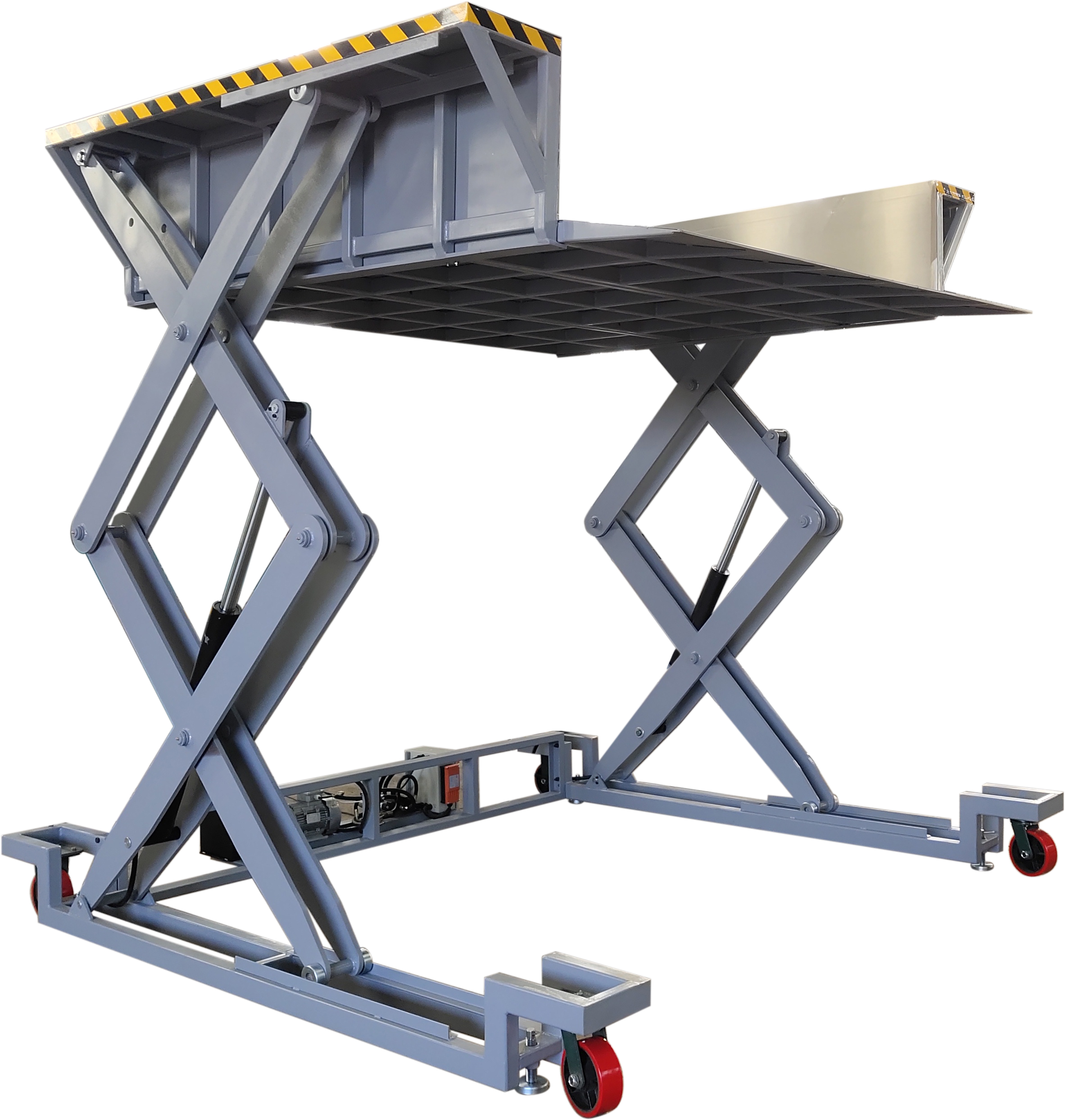

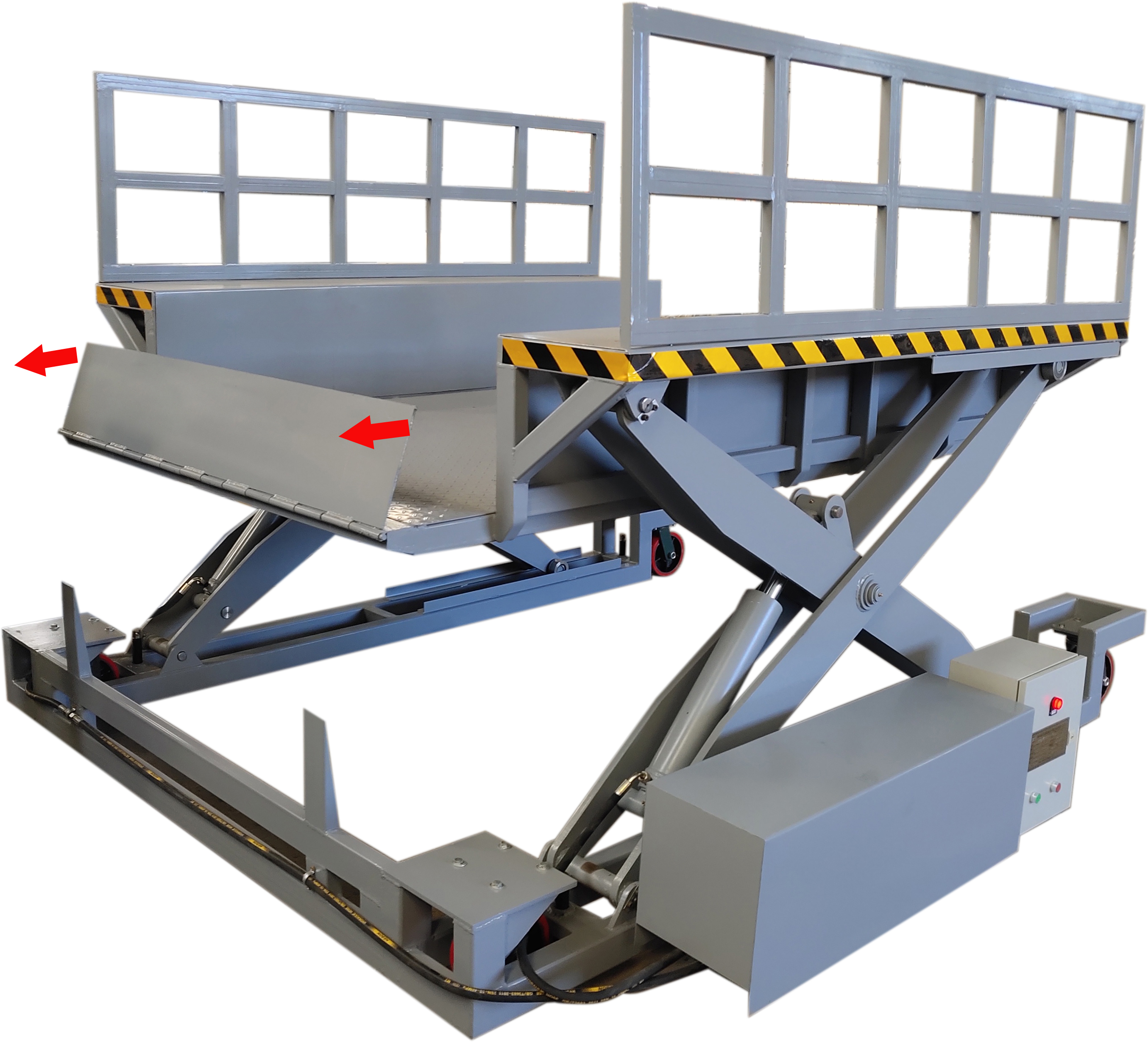

    Product details:


    157097507745123032副本

    Product advantages:

    1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

    2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.

    3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

    4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.

    5.The hydraulic system has a power failure emergency manual descending device.


    Control system:

    1.The power part :AC380V/220V or DC24V/12V.

    2.The control part :   24V safety voltage.

    3.Each platform has a complete set of control switches.

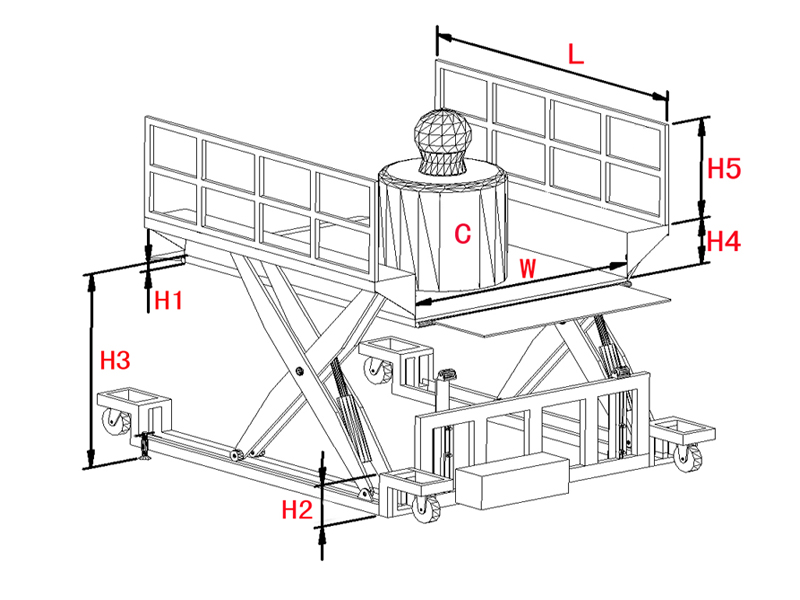

    parameter
    model

    Platform

     size

    (mm)

    Rated

    loading(kg)

    Min

    height

    (mm)H1

    Max

    height

    (mm)H3

    Guard

    plate height

    (mm)H5

    Lifting speed

    (mm/s)

    Power

    (Kw)


    PTY-012000*1300

    1000

    60

    1300

    600

    50

    1.5

    PTY-02

    2300*1500

    1500

    60

    1500

    600

    50

    2.2
    Product height and size can be customized, also can be customized fixed platform.
