The stationary loading ramp is suitable for material handling, warehouse, wharf, logistics center, working place ect. and no need the electric power source, can adjust the height of the ramp easily.

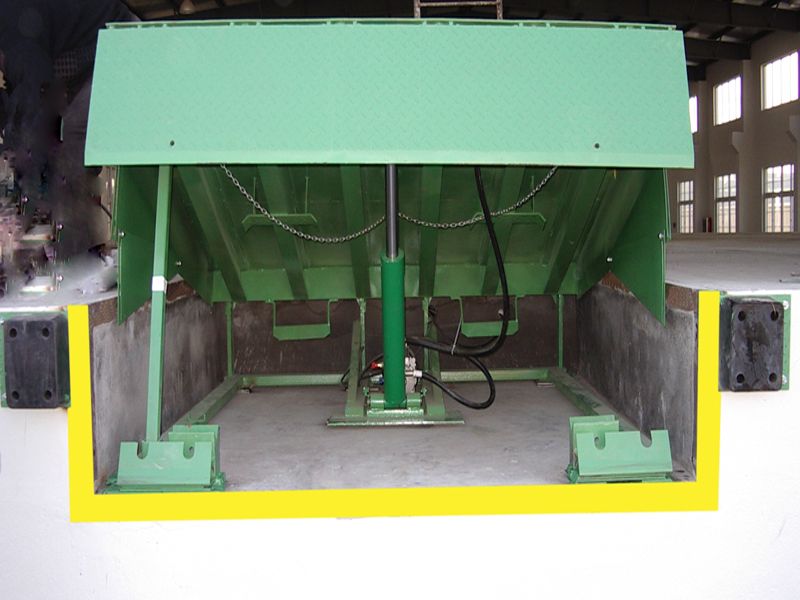

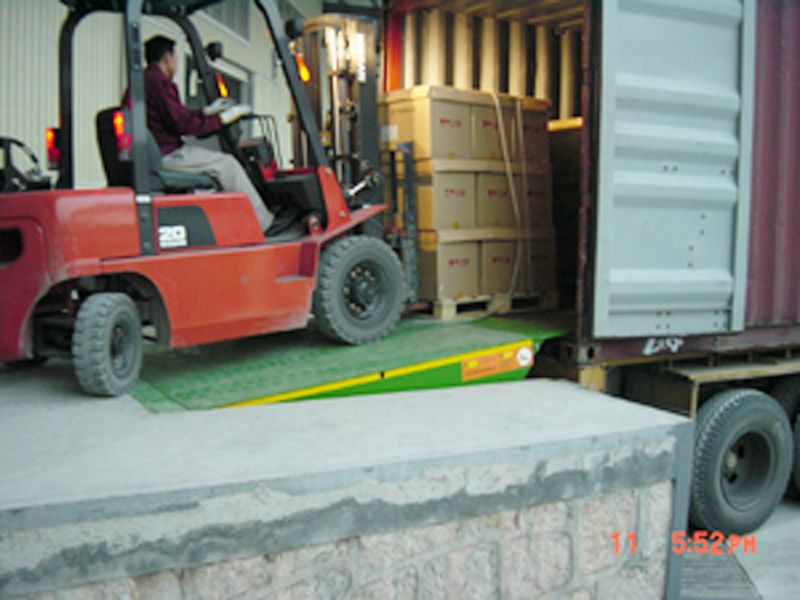

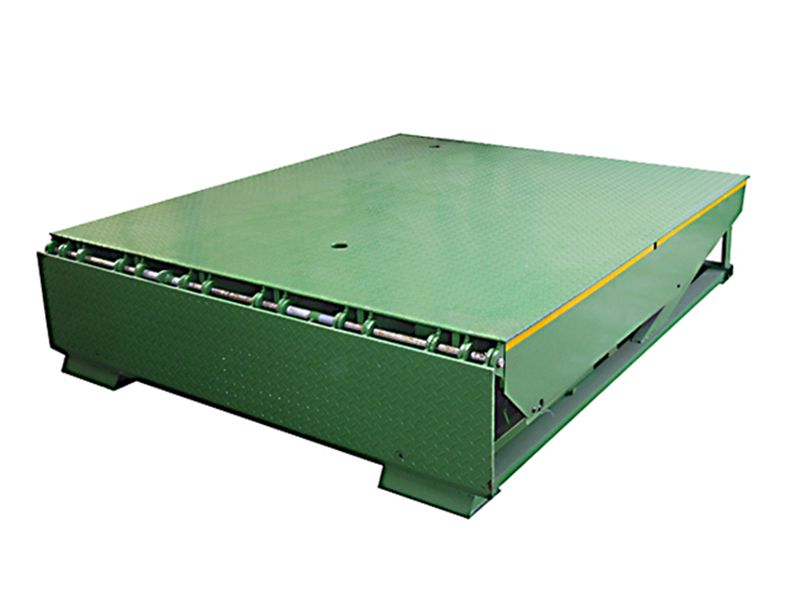

Hydraulic Stationary Dock Ramp is a special auxiliary equipment for loading and unloading of goods. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is controlled by manual or electric hydraulic system, so people could operate it conveniently. It enables you to save labor force and improve working efficiency.
parameter

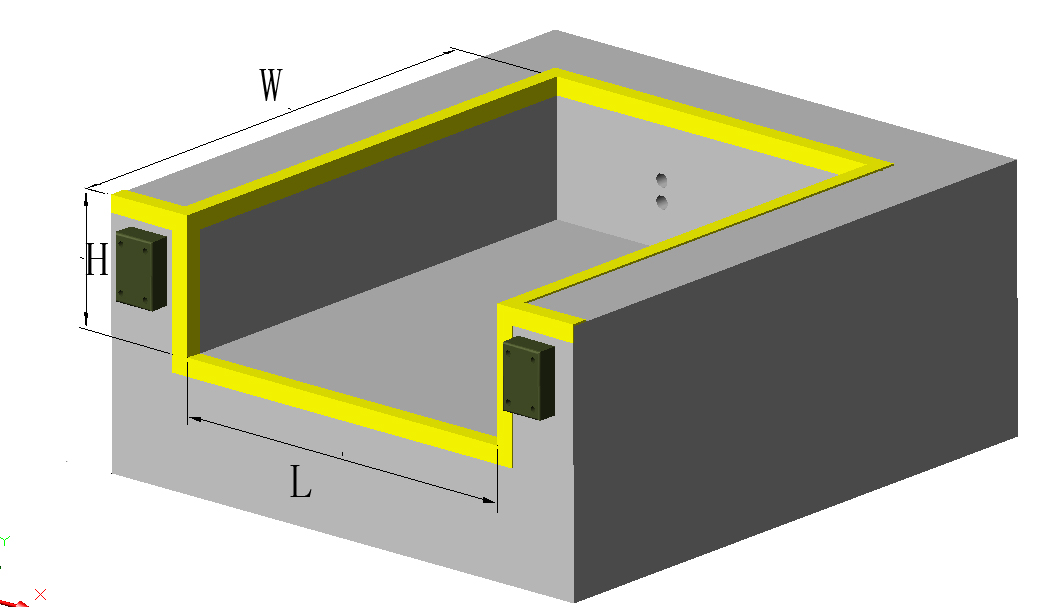

Model | Load (ton) | Table Size (mm) | Pit Size (mm) | Lip height (mm) | Own height (mm) | Voltage (V) | Motor Power (Kw) |
DCQ0.55-6 | 6 | 2000*1800 | 2160*1840*600 | 400 | 600 | 380/220 | 0.75 |
DCQ0.65-6 | 6 | 2000*2000 | 2160*2040*600 | 400 | 600 | 380/220 | 0.75 |
DCQ0.7-8 | 8 | 2500*2000 | 2660*2040*600 | 400 | 600 | 380/220 | 0.75 |
DCQ0.55-8 | 8 | 2000*1800 | 2160*1840*600 | 400 | 600 | 380/220 | 0.75 |
DCQ0.65-10 | 10 | 2000*2000 | 2660*2040*600 | 400 | 600 | 380/220 | 0.75 |
DCQ0.7-10 | 10 | 2500*2000 | 2660*2040*600 | 400 | 600 | 380/220 | 0.75 |
Special customized |
