Aerial Lift Platform
Hydraulic Electric Scissor Aerial Work Lift Platform
The scissor aerial work platform is a special equipment for high-altitude operation.Its shear - fork mechanical structure makes the lifting platform higher stability after lifting.The wide operating p
Max height12000mm
Max load capacity500kg
Motor power2.2kw

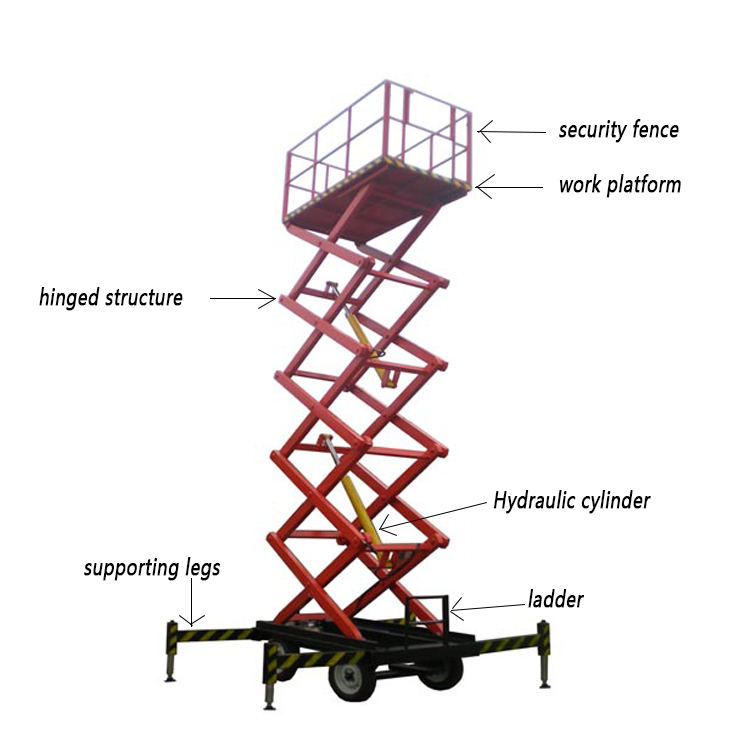

  • The scissor aerial work platform is a special equipment for high-altitude operation.Its shear - fork mechanical structure makes the lifting platform higher stability after lifting.

    The wide operating platform and high carrying capacity make the height of the high altitude operation more extensive,suitable for many people at the same time and making high-altitude work more efficient and safer.

    13


    Product advantages:

    1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

    2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.

    3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

    4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.

    5.The hydraulic system has a power failure emergency manual descending device.


    Control system:

    1.The power part :AC380V/220V or DC24V/12V.

    2.The control part :   24V safety voltage.

    3.Each platform has a complete set of control switches.

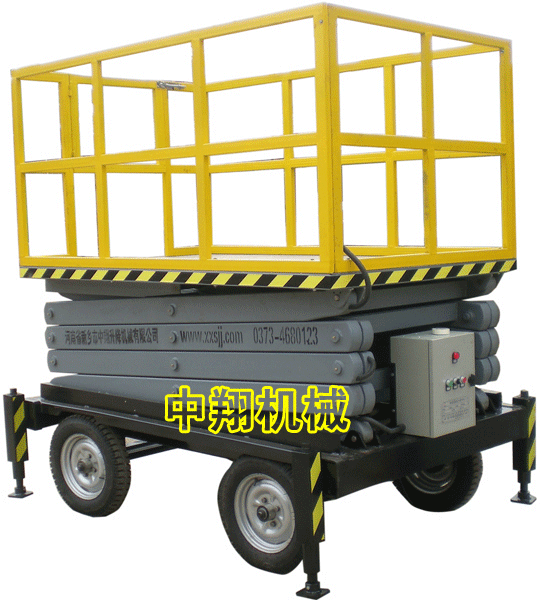

    动图

    parameter

    Model

    Rated load

    (kg)

    Platform size(m)

    Max

    height(m)

    Mim height

    (m)

    Lifting time

    (s)

    Motor Power

    (kw)

    voltage

    (v)

    SGY0.2-4

    200

    1.8*0.8441.15251.1380/optinal

    SGY0.5-4

    500

    1.8*0.8441.15291.1380/optinal

    SGY0.3-6

    300

    2*0.9661.25501.5380/optinal

    SGY0.5-6

    500

    2*0.9661.25551.5380/optinal

    SGY0.3-8

    300

    2*1.15

    81.38601.5380/optinal

    SGY0.5-8

    500

    2*1.15

    81.38692.2380/optinal

    SGY0.3-11

    300

    2*1.15

    111.65652.2380/optinal

    SGY0.5-11

    500

    2*1.15

    111.65802.2380/optinal

    SGY0.3-12

    300

    2*1.15

    121.70702.2380/optinal

    SGY0.5-12

    500

    2*1.15

    121.70852.2380/optinal
