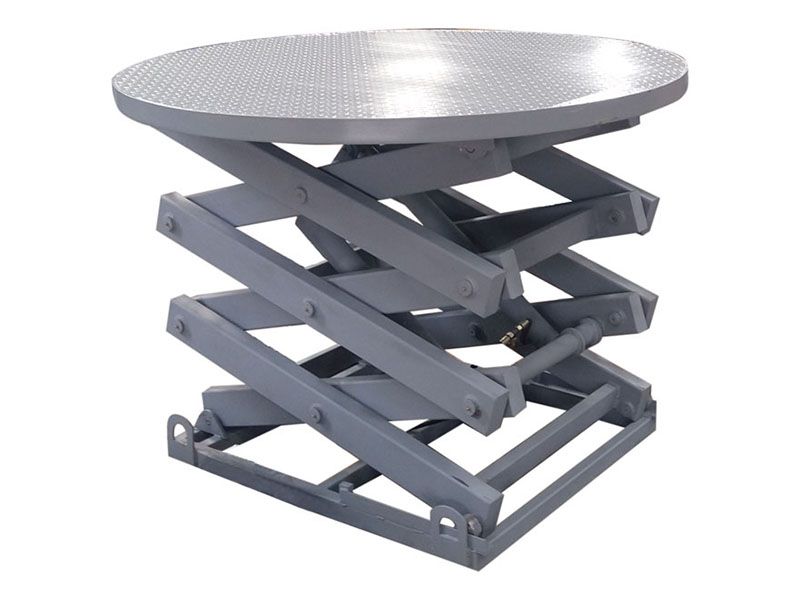

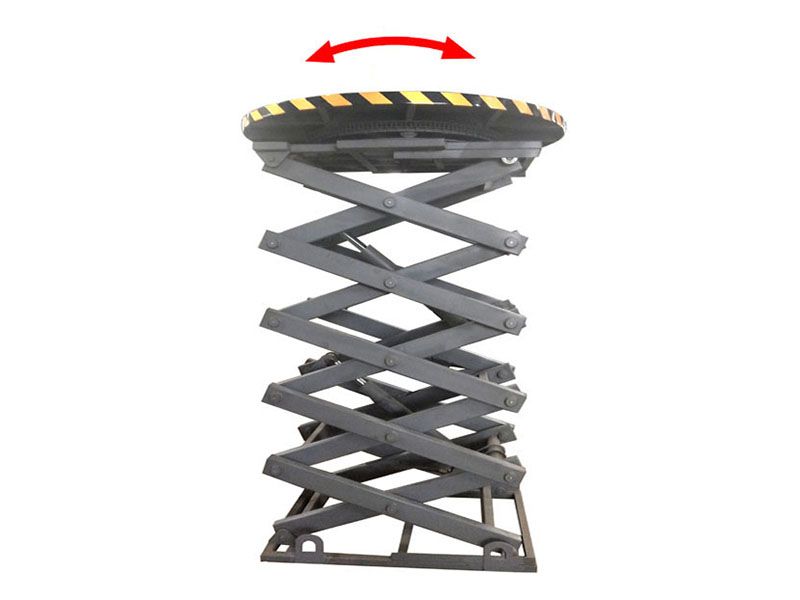

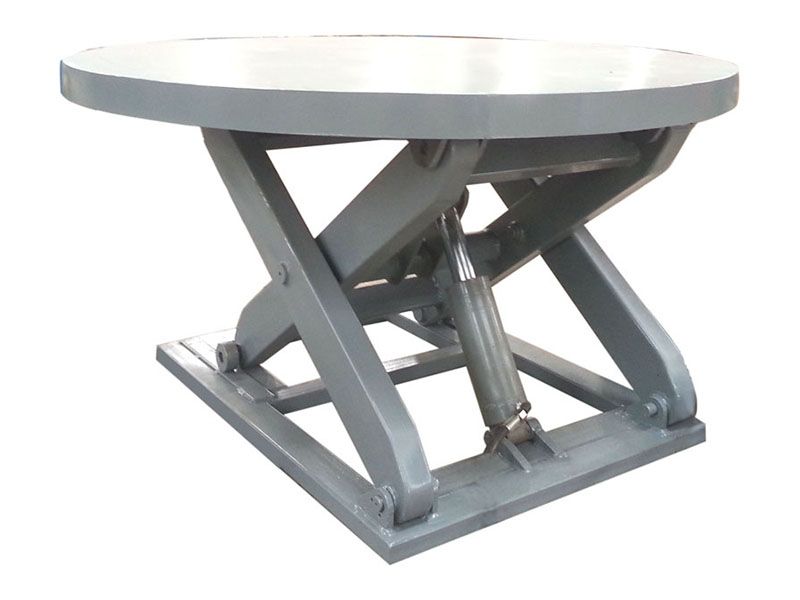

The rotating lifting platforms are widely used in stage, auto show, halls, theaters, multi-purpose halls, studios, cultural stadiums, hotels and other cultural and entertainment venues. The product is compact and stable, can adapt to high frequency continuous operation, and has a hydraulic system with overload protection to ensure safety and stability during operation.
We can make a variety of shape lifting platforms. Depending on your requirements, the rotary lifting platform can be round, square or other shape, and the stage lifting structure can be scissors or vertical depending on your load capacity and shape.
parameter
Diamater | 4m | 4.5m | 5m | 5.5m | 6m | 6.5m | 7m |
Load Capacity | 2000kg | 2500kg | 3000kg | 3500kg | 4000kg | 4500kg | 6000kg |
Motor Power | 0.55Kw | 0.55Kw | 0.55Kw | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw |
Min height | 0.6m | 0.6m | 2.4m | 2.4m | 2.4m | 3.2m | 3.2m |
Max height | Customizied height | ||||||
Voltage | AC220V 50HZ 1PH or AC380V 50HZ 3PH | ||||||
Material | Steel | ||||||
All the platform size, capacity, color, travel height etc can be customized |
