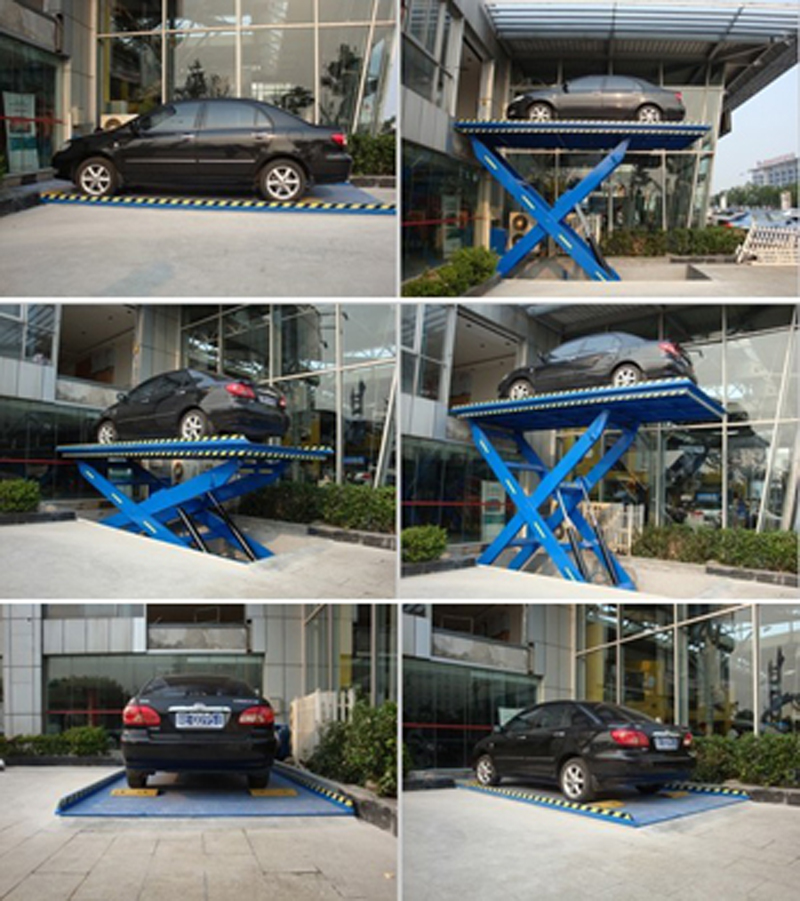

SJG car scissor car lift is an ideal equipment to vertical transport vehicles, Scissor structure guarantees machine stability and safetyThe capacity is suitable for almost all kinds of small cars,which is a perfect choice used for outside repairs and maintenance. It can be moved freely in narrow workshops to get the car lifted and It is the safety and ideal car lift.
Product advantages:
1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.
2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.
3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.
4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.
5.The hydraulic system has a power failure emergency manual descending device.
Control system:
1.The power part :AC380V/220V or DC24V/12V.
2.The control part : 24V safety voltage.
3.Each platform has a complete set of control switches.

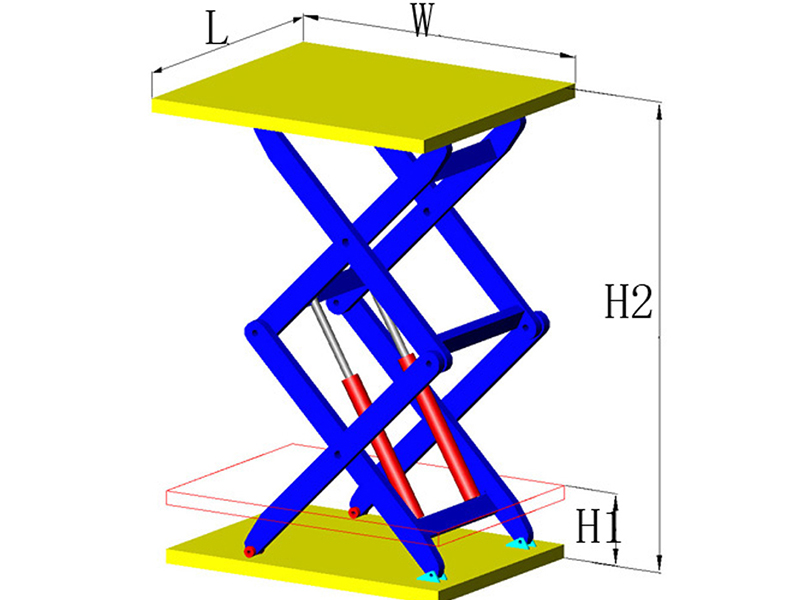

model | rated loading(kg) | min height(mm)H1 | max height(mm)H2 | table size(mm)L*W | lifting time(s) | votage(V) | power(Kw) |

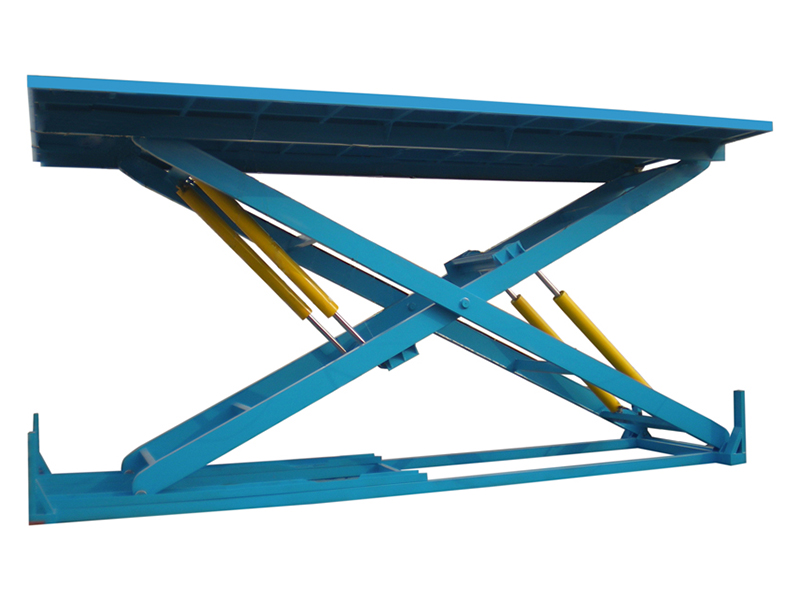

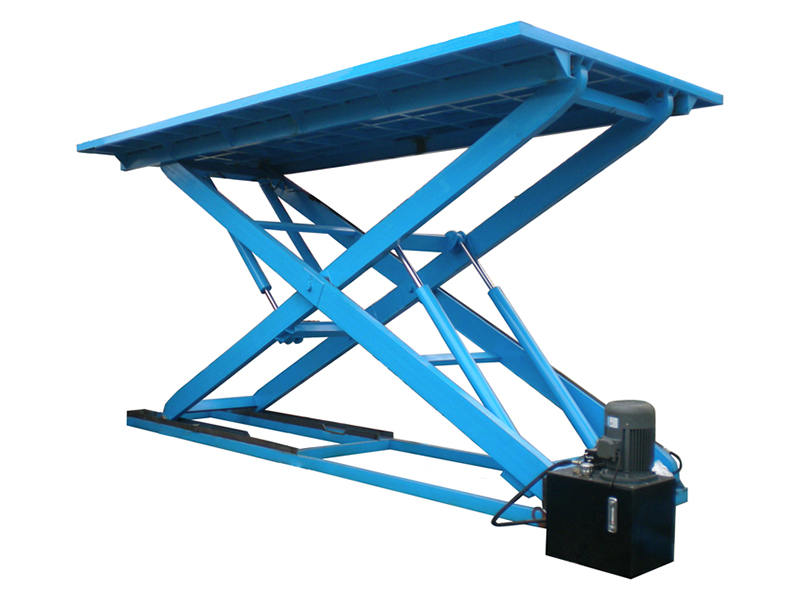

single scissor lift platform | |||||||
SJG3.2-2 | 2000 | 650 | 3850 | 5500*2000 | 35 | 380 | 4 |
SJG4-3 | 3000 | 800 | 4800 | 6000*2200 | 40 | 380 | 5.5 |

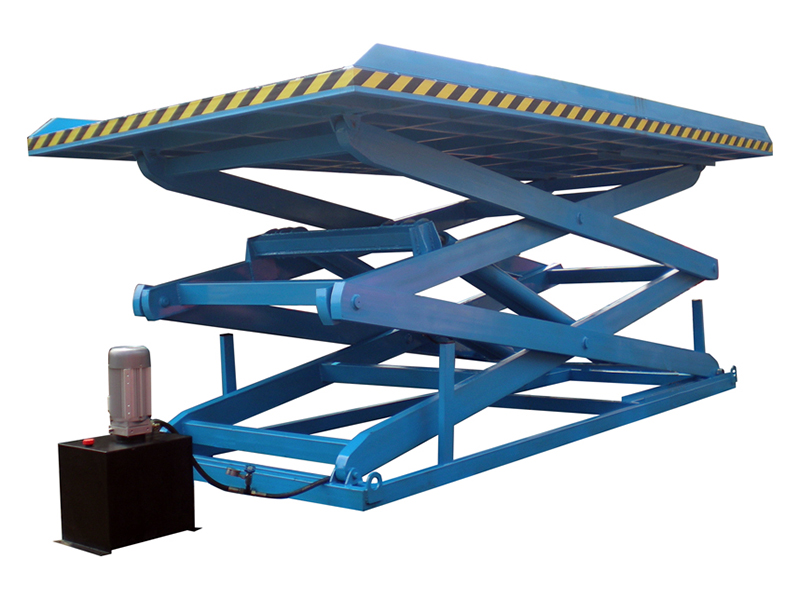

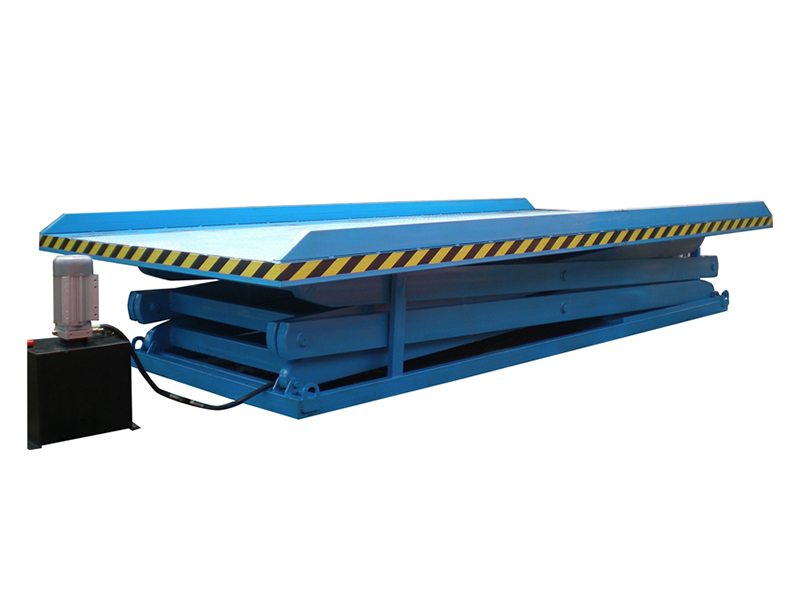

double scissor lift platform | |||||||
SJG5-2 | 2000 | 1000 | 6000 | 5500*2000 | 45 | 380 | 5.5 |
SJG7-2 | 2000 | 1000 | 8000 | 5500*2200 | 28 | 380 | 5.5 |
customization | optional |
