Stationary Scissor Lift
Fixed Lifting Platform With Multiple Functions
The stationary lifting platform has many special configurations according to different needs: roller type, side movable type and automatic loading flap.Features:1. Compact and stable structure, it can
Min height200mm
Max load capacity10000kg
Drive modeCUSTOMIZED SIZE
  • The stationary lifting platform has many special configurations according to different needs: roller type, side movable type and automatic loading flap.


    Features:

    1. Compact and stable structure, it can adapt to high frequency continuous operation.

    2. The height and stability of the lift can meet the steady lifting of large tonnage cargo.

    3. It has a hydraulic system with anti-attachment and overload protection to ensure safe operation.

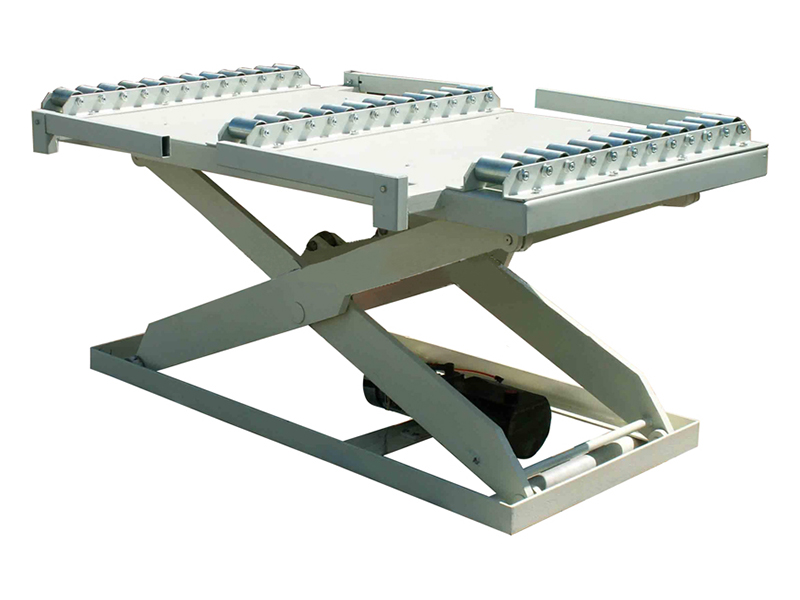

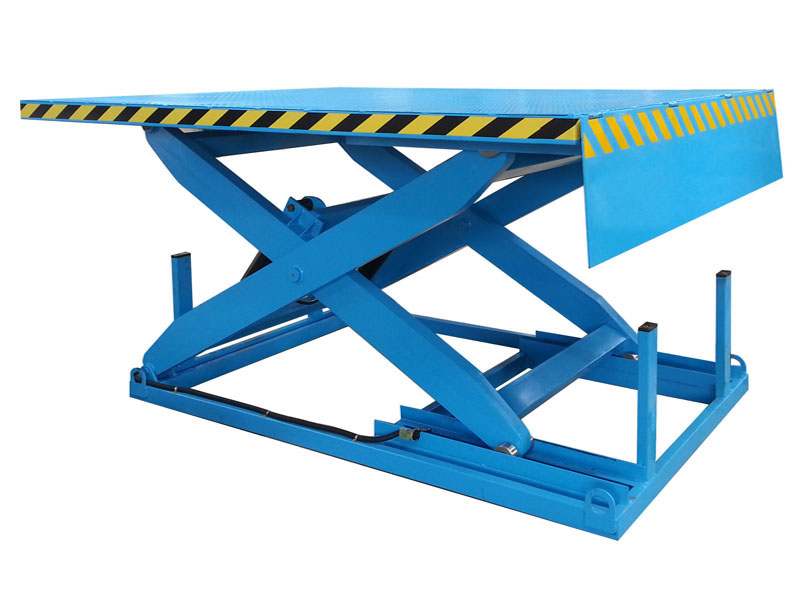

    4. Arbitrary configuration of rollers, balls, turntables, automatic loading flap, etc., can meet the requirements of different working conditions.


    parameter
    modelrated loading(kg)min height(mm)H1max height(mm)H2table size(mm)L*Wlifting time(s)votage(V)power(Kw)
    single scissor lift platform
    SJG1-0.85002009001350*700163801.5
    SJG1-0.8100022010201500*800183802.2
    SJG1-2200022010201800*1000313803
    SJG1.2-5500035015502000*1200563805.5
    SJG1-101000045014502800*1800483805.5
    customizationoptional
