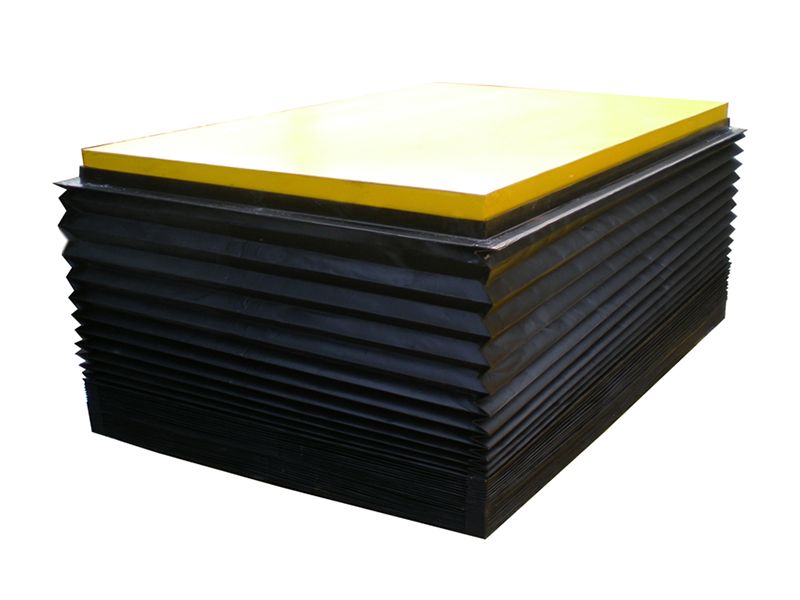

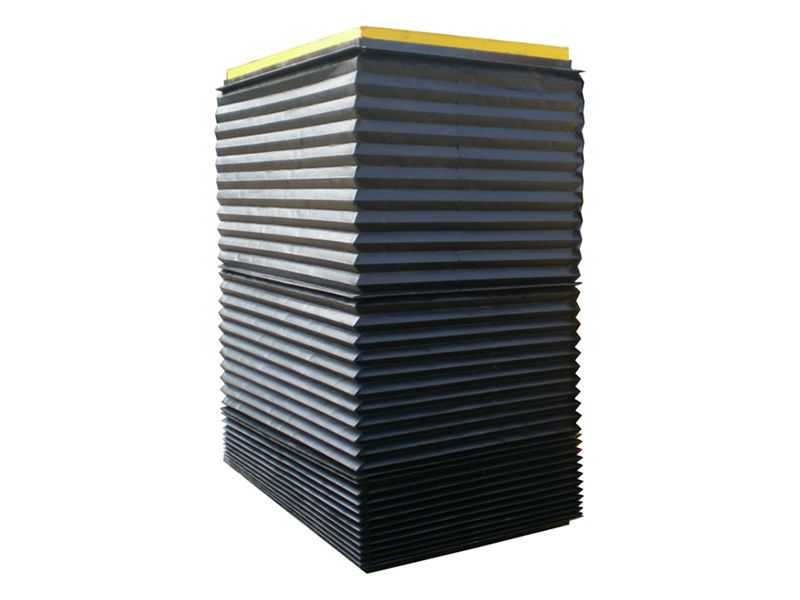

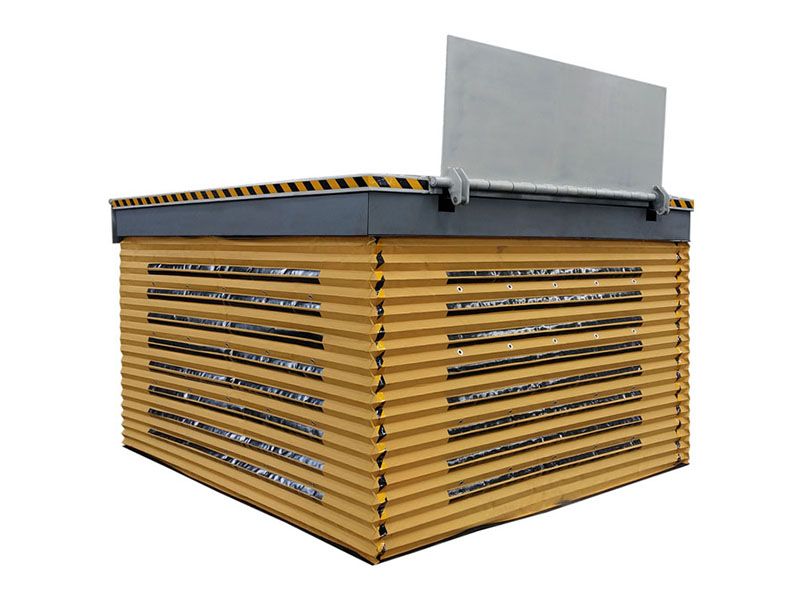

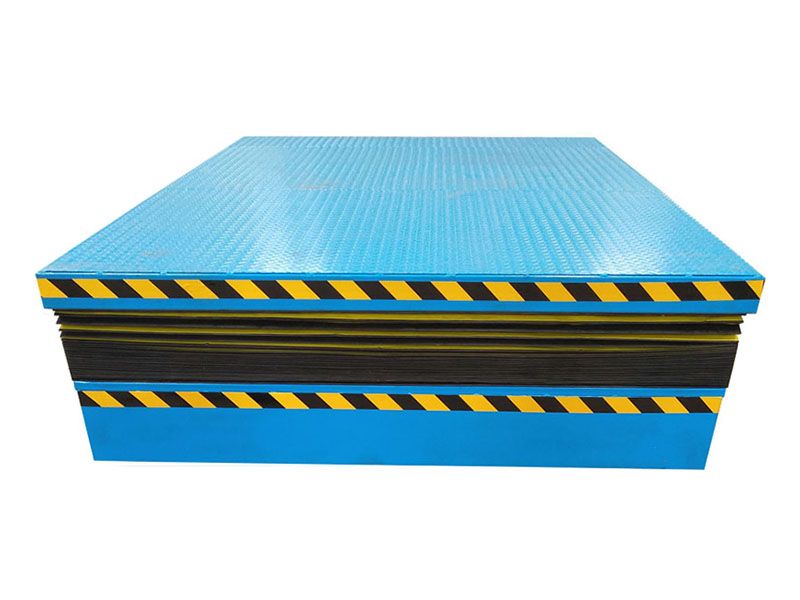

The dust cover plays an important role in the protection of the fixed lifting platform. It can protect the machinery structure from external pollution such as dust, foreign matter, ultraviolet rays and water, and protect the hydraulic system and the rail system of the lifting platform. Extend the service life of the machine, commonly used materials are barley paper, three anti-cloth, artificial leather, canvas, small bright cloth and so on. The protective cover is easy to install, dustproof and oil proof, and can even be made into high temperature resistant type.
Customized lifting platform dust cover requires customers to provide the size of the upper and lower connections and the size of the parts to be protected. We can design a reasonable and durable protective cover accordingly.
Model | Platform size(mm) | Load capacity | Lifting height (m ) | Outline drawing (mm) |
SJG0.3-1.2 | 2500*1630 | 300kg | 1.2 | 2350*1630*350 |
SJG0.5-2.5 | 1500*1500 | 500kg | 2.5 | 1500*1500*480 |
SJG1.5-5.5 | 2000*2000 | 1500kg | 5 | 2000*2000*970 |
SJG3-3.5 | 2000*2500 | 3000kg | 3.5 | 2000*3000*800 |
SJG5-1.2 | 2600*2600 | 5000kg | 1.2 | 2600*2600*530 |
SJG8-1.5 | 3000*2000 | 8000kg | 1.5 | 3000*2000*550 |
All the platform size, capacity,etc can be customized |
