7.3M/24Ft Industrial Ceiling Fan
6.1/20 Ft 7.3M/24ft 5 fan blade industrial ceiling fan
This series of industrial energy-saving fans is a high-volume low-speed fan with a diameter of 7.3 meters and a rotation speed of only 5 RPM. After accurate calculations, the cooling effect felt
Motor power1.5kw
Running speed50r/min
Fan diameter7.3m
Air volume7.3m
  • This series of industrial energy-saving fans is a high-volume low-speed fan with a diameter of 7.3 meters and a rotation speed of only 5 RPM.

    After accurate calculations, the cooling effect felt by the fans in actual applications can reach 5-8℃, and the maximum operating power is only 1.5KW.


    Natural three-dimensional wind system:

    工作原理

    photobank

    parameter

    Model

    Maximum speed(r/min)

    Fan body weight(kg)

    Motor Power(kw)

    Maximum ventilation(m³/min)

    Diameter(m)

    Number

    of blades

    XV5-7.3

    50

    127

    1.5

    13600

    7.3

    5
    XV6-7.350
    1501.5
    140007.36
    XV5-6.1601001.5120006.15
    XV6-6.1601201.5130006.16

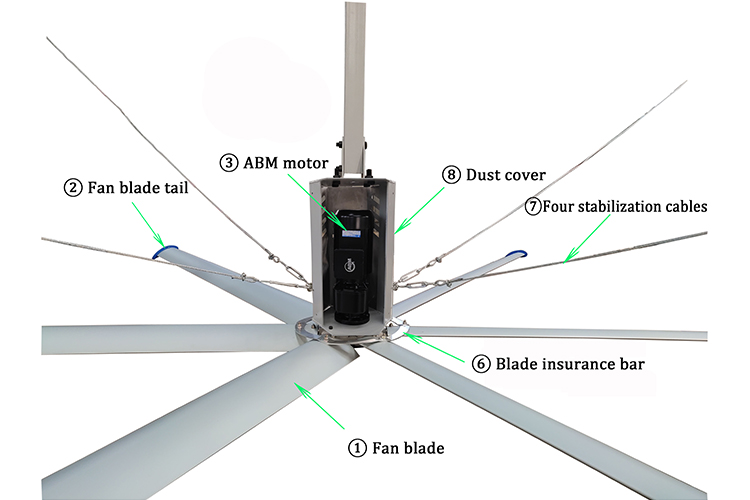

    Fan details:

    细节

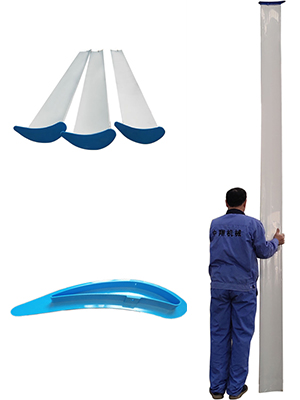

    Fan blade

    *high strength aluminum magnesium alloy fan blade

    *6 pcs blades to ensure Max airflow and efficiency

    *The surface is subjected to T5+ bright oxidation treatment and fluorocarbon baking process

    叶片

    Fan blade tail

    The unique tail increases the stall angle, reduces drag, reduces wind noise, and stabilizes the blades.

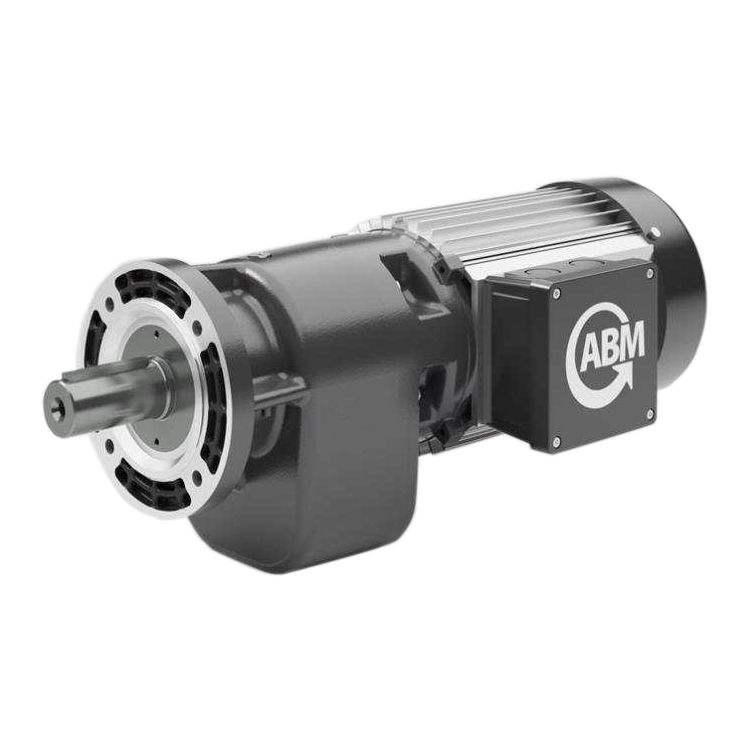

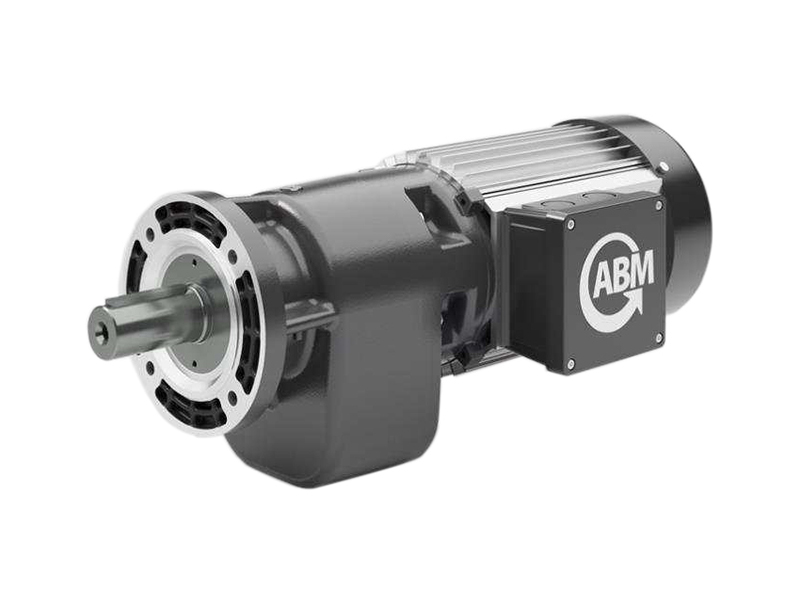

    Germany imported brand

    *SEWABM to promise durability and reliability

    *The SEW geared motor is small in size, stable in starting and low in loss

    abm电机

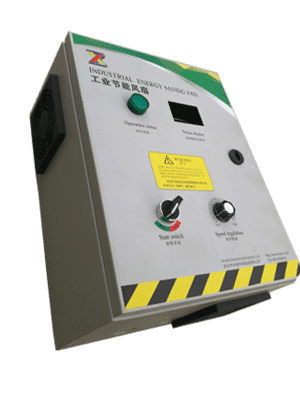

    Control box

    *Import Schneider, ABB frequency conversion control box

    *Through frequency conversion stepless speed regulation, precise control

    *Three-speed fan for extended fan life

    Untitled-1

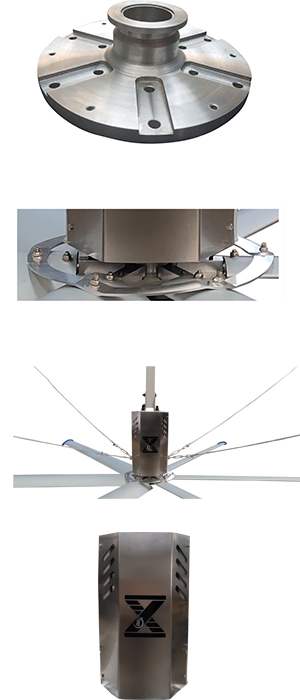

    High-strength Q235B steel hubs

    *Ensure a good balance during fan rotation and improve safety.

    *CNC machine tool processing, with good balance performance

    *The surface is galvanized for longer life

    未标题-4

    Blade insurance bar:

    *re-connecting all the blades and underpan,

    becoing the integral structure.

    *Prevent leaves from falling

    Four stabilization cables

    *four wire cables in four direction for balance

    *four stabilization cables from the motor housing to veiling limit vibration and provid added safety

    Dust cover

    *Protect- the host from external pollution and damage such as dust

    *Made of 304 stainless steel for longer life



    Product packing:

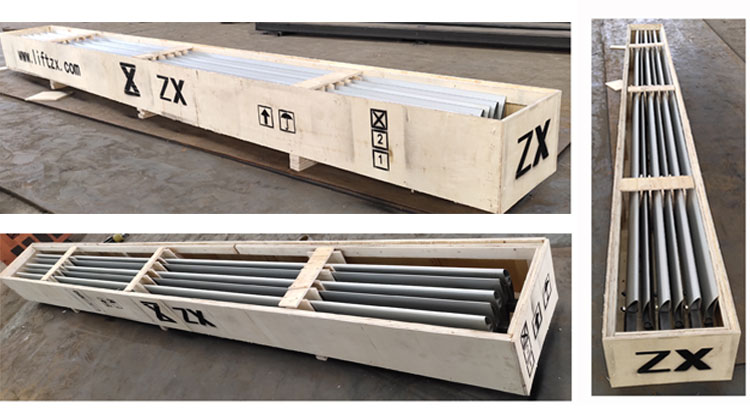

    fan blade packing

    100_02

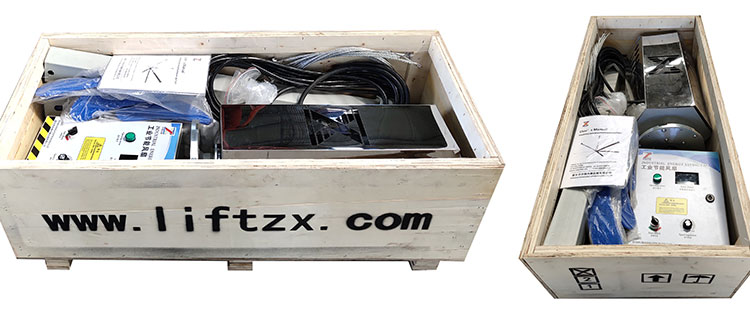

    Other accessories packaging

    100_04
