Mobile Scissor Lift
Single scissor mobile Lift Platform With Supporting Legs
Product Details  Since the conventional lifting platform has a lighter chassis, it is easy to tilt by simply lifting the wheel on the ground. Therefore, our support legs play a supporting role. W
Min height200mm
Max load capacity10000kg
Mobile modeManual/Electric
  • Product Details

    26

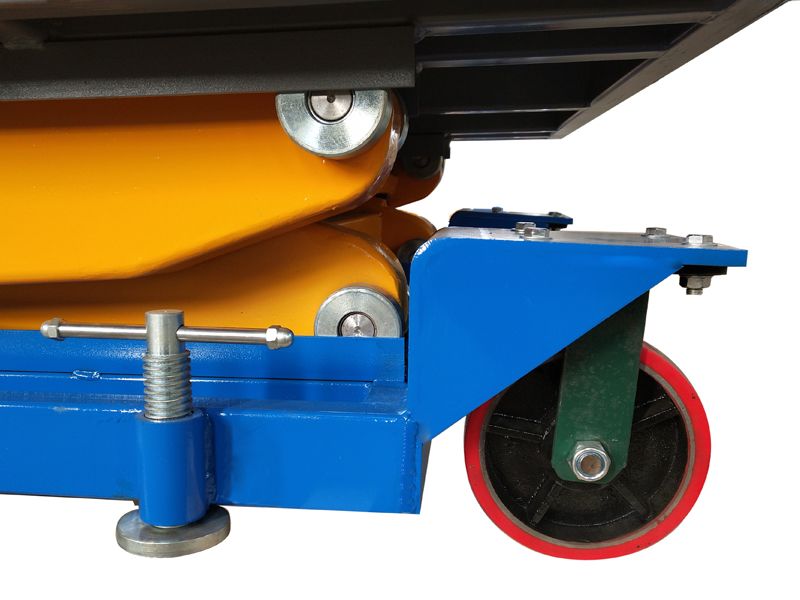

      Since the conventional lifting platform has a lighter chassis, it is easy to tilt by simply lifting the wheel on the ground. Therefore, our support legs play a supporting role. When the equipment is in use, the support legs are opened, so that the focus of the equipment is concentrated on the support legs, and the platform is more stable during the operation. The support leg can be pulled out when it is in use, and then its height can be adjusted until it is fully supported on the ground.

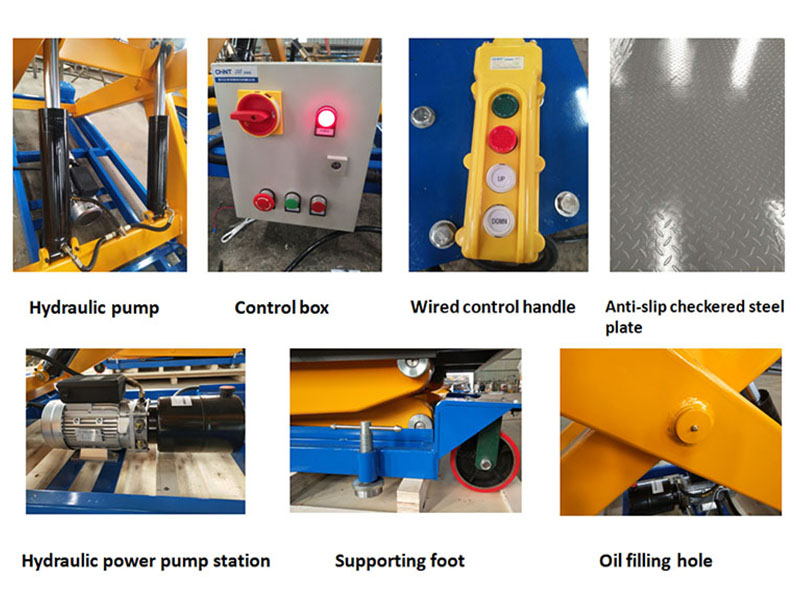

    Product advantages:

    1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

    2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.

    3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

    4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.

    5.The hydraulic system has a power failure emergency manual descending device.


    Control system:

    1.The power part :AC380V/220V or DC24V/12V.

    2.The control part :   24V safety voltage.

    3.Each platform has a complete set of control switches.

    移动5


    parameter
    modelrated loadin(kg)min height(mm)max height(mm)table size(mm)

    lift

     time(s)

    votage(V)power(Kw)
    SJY1-0.85002009001350*70016380/Optional1.5
    SJY1-0.8100022010201500*80018380/Optional2
    SJY1-2200022010201800*100031380/Optional3
    SJY1.2-5500035015502000*120056380/Optional5.5
    SJY1-101000045014502800*180048380/Optional5.5
    customization
