1. Use the mechanical stopper, the platform to the height limit position induction stop.
2. The guide rail is connected with high-strength I-steel, with stable structure, wear-resistant and dust-proof.
3. The connection is connected with one steel plate and 32 bolts to ensure the overall stability.

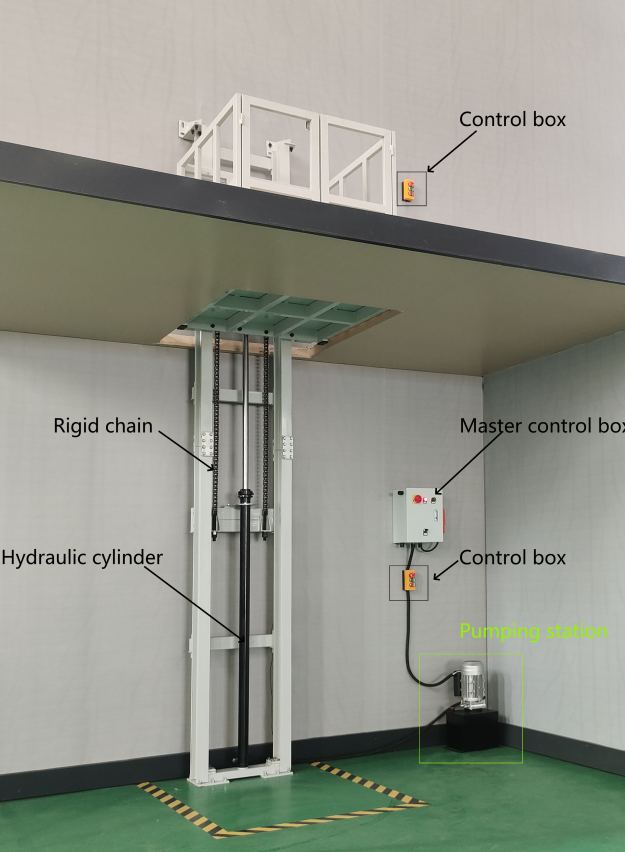

4. The lifting chain adopts rigid double chain and has self-detection system.
5. Specially customized hydraulic cylinder, wear-resistant and efficient.

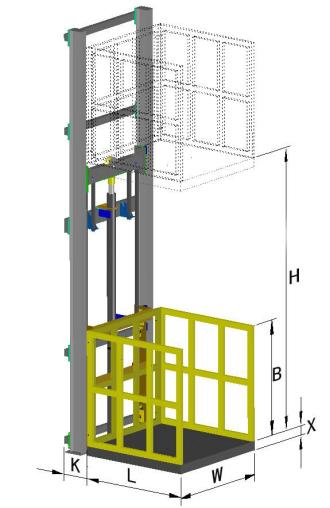

Model |
Platform size L * W (mm) |
load (kg) |
Lifting Height H (mm) |
Height X (mm) |
Barrier height B (mm) |
Power (Kw) |
Voltage (V) |
SJD3- 0.3 | 1000*1000 | 300 | 3000 | 80 | 1000 | 2.2 | AC120-480V |
SJD4-0.5 | 1200*1200 | 500 | 3700 | 100 | 1000 | 2.2 | AC120-480V |
SJD4.5-1 | 1500*1500 | 1000 | 4500 | 100 | 1000 | 2.2 | AC120-480V |
CUSTOM | |||||||
